Poly Edge E400/E450 Line Key Order

Updated: 04/12/2024

Objective

Understand the order in which power keys are configured on Poly Edge E400/E450 desk phones.

Applies To

  • Admin Console
  • Power Keys

Poly Edge E400/E450 Line Key Availability

  1. Log in to Admin Console.
  2. Click Users.
  3. Click Edit (pencil icon) to the right of a user that has a Poly Edge E400/E450 activated on their account.
  4. Under Voice Basic Settings, to the right of Device Model, click Line Key Configuration.

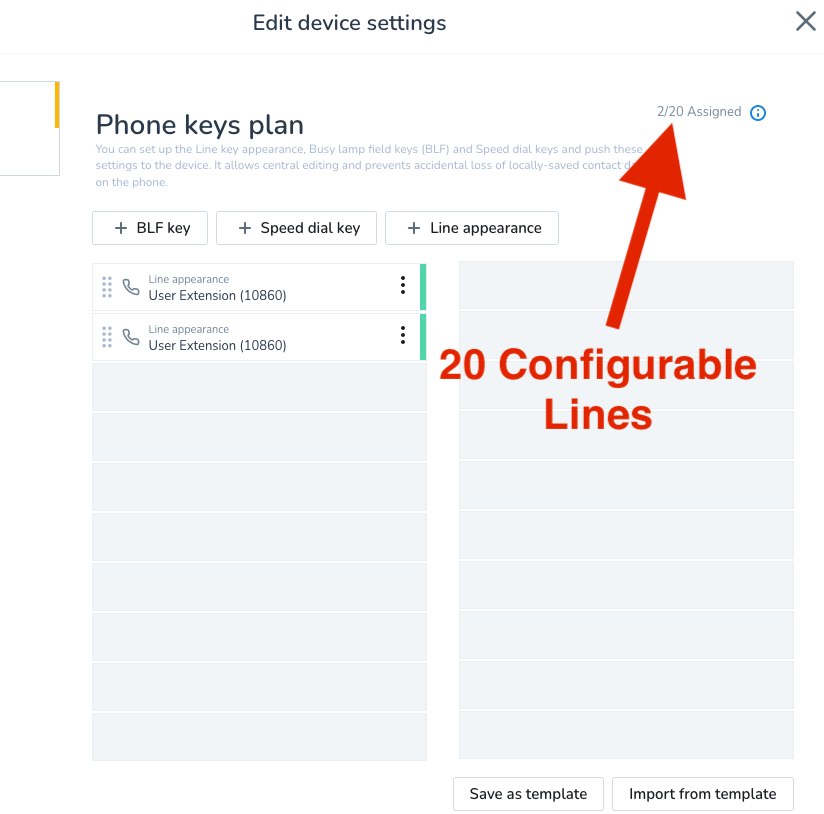

  5. Notice the Poly Edge E400/E450 have 20 line key slots available.

Poly Edge E400/E450 Line Key Order

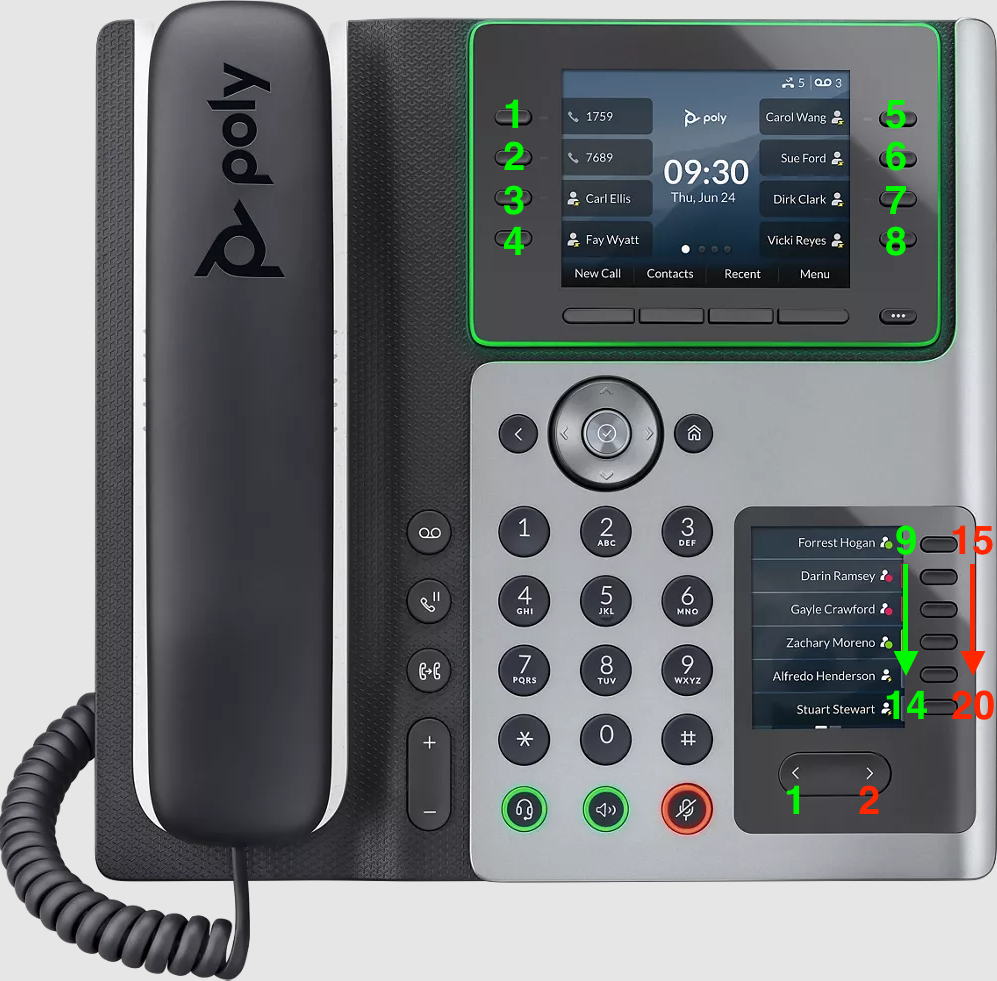

The screenshot below shows where line keys will be appear on the phone once configured:
  1. Lines 1-8 are located on the top main screen.
  2. Lines 9-14 are located on the first page of the bottom right screen.
  3. Lines 15-20 are located on the second page of the bottom right screen.

Additional Information

Pagination on the main screen of the phone will kick in if a 21st key is configured. For more information, see Pagination on  Poly Edge E Series Phones.
