Objective
Determine whether an Obihai 300 is in a good working status.
Applies To
- Poly OBi300
- Overhead Paging
- Fax
Procedure
Gather the IP Address of the Obihai
- Connect an analog phone to the Obihai adapter.
- Dial #123 to retrieve the IP and note it down.
- Navigate to this IP address in a browser, on a computer that is on the same network and the adapter.
Log in to the Adapter
- Log in to web GUI of the OBI 300.
- From the Status Menu, select PHONE Port Status.
- If the Line Port status or Port Status doesn't have any entries or Voltage value, it's defective.

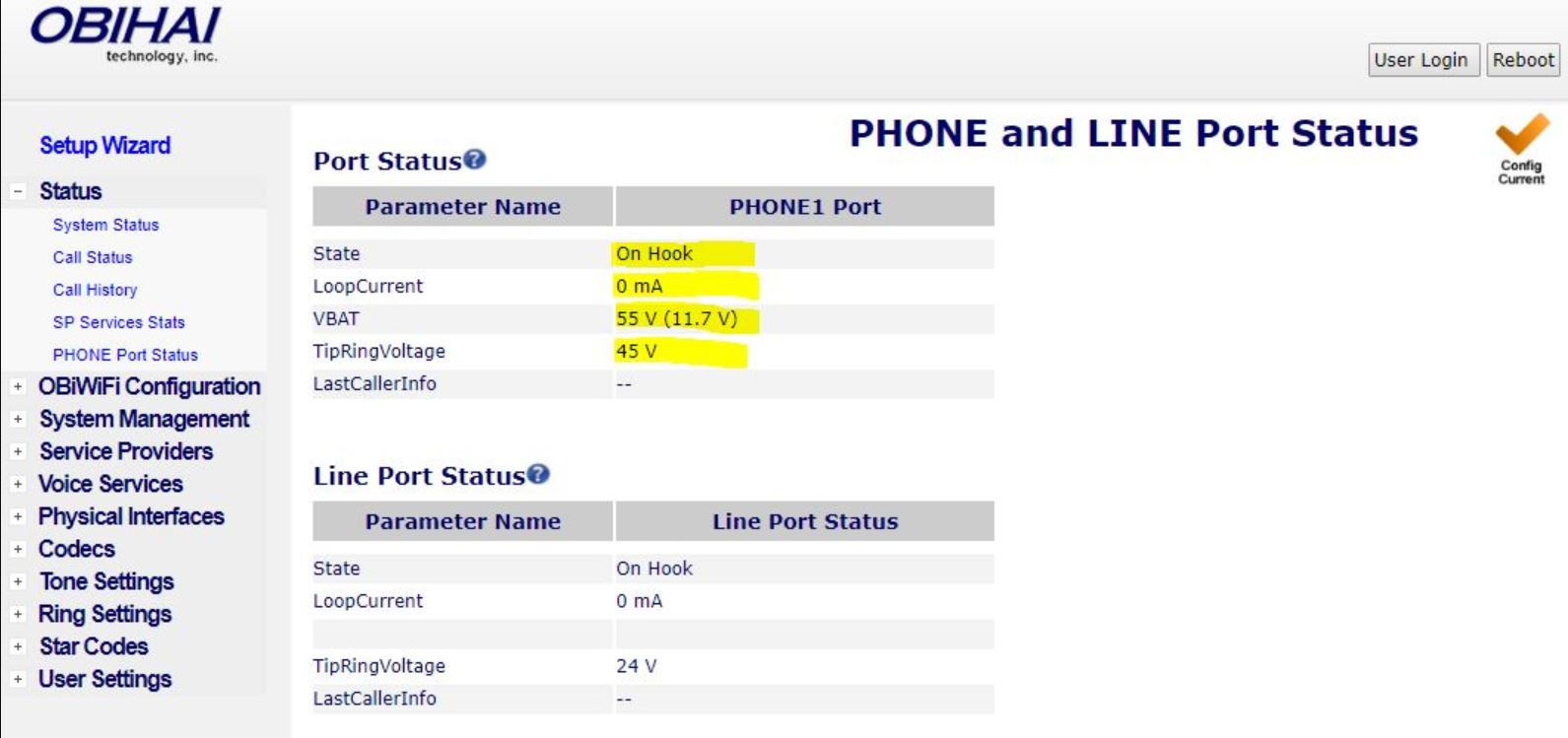

Example of a good, working OBI 300
