How to test SIP Credentials using MicroSIP

Updated: 03/25/2026

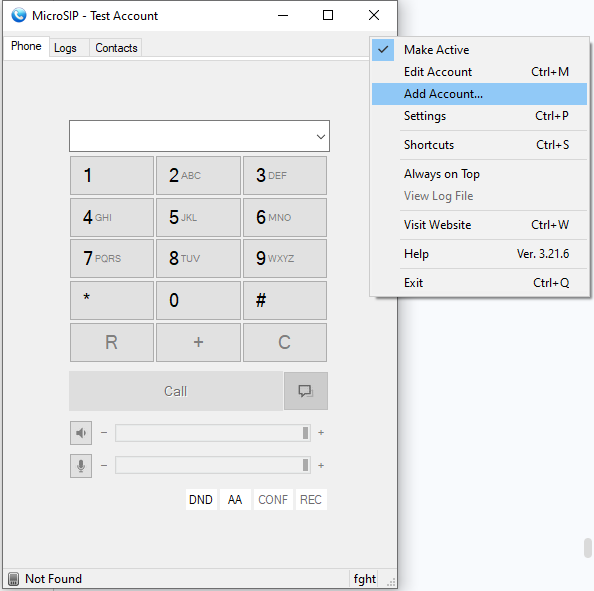

Select the Drop down arrow located on the upper right hand corner
Select "Add Account…"

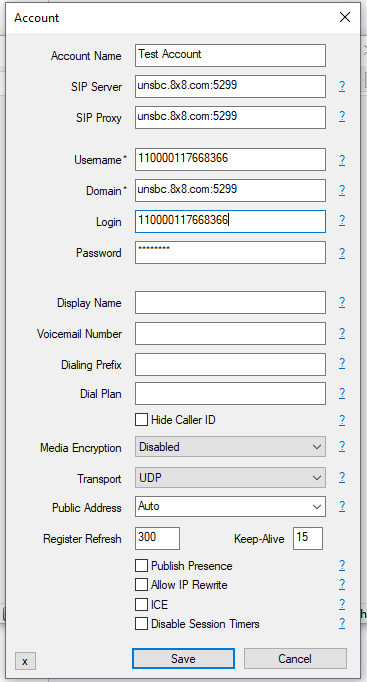

Input the following SIP Credential configurations that were provided to the customer:
1. Account Name: Test Account
2. SIP Server: unsbc.8x8.com:5299
3. SIP Proxy: unsbc.8x8.com:5299
4. Username: (input the GUN/Device ID that was gathered from Intraswitch)
5. Domain: unsbc.8x8.com:5299
6. Login: (input the GUN/Device ID that was gathered from Intraswitch)
7. Password: (input SIP Password that was gathered from TCL)
Ensure the following is configured as:
1. Media Encryption: Disabled
2. Transport: UDP
3. Public Access: Auto
4. Register Refresh: 300
5. Keep-Alive: 15
Select "Save" located at the bottom

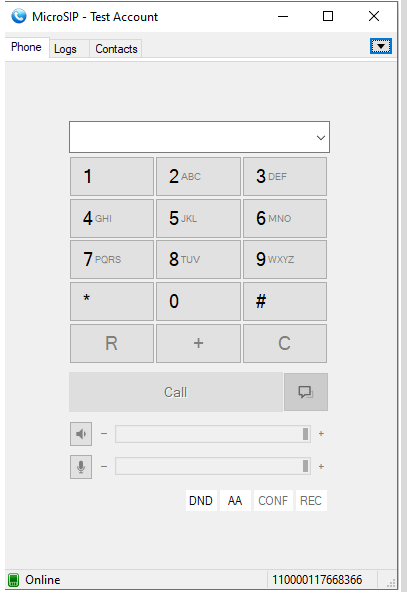

Once SIP Credentials are verified, the bottom of the application will show Online with the GUN/Device ID/Username
Place a test call to confirm the provided SIP Credentials
After placing a test call, remove or delete the credentials added

Note: SIP credentials are limited to one device and failure to delete the credentials may result in issues for the customer.

Make sure to test with the SIP Credentials that were provided. If they do not work, confirm the SIP Credentials are correct.
